5 Minute Intraday

5 Minute Intraday is a trend-pullback strategy built for five-minute candles. It combines a fast and pullback EMA, a slower SMA trend reference, a smoothed measurement of that SMA’s angle, ADX strength, and recent support or resistance.

The strategy buys when the fast EMA is above the pullback EMA, price is above the trend SMA, the trend angle is sufficiently positive, ADX confirms usable movement, and price returns to the fast/pullback EMA “fire zone.”

This method is best suited to liquid intraday markets with a clear, moderately strong trend and orderly EMA pullbacks. It is designed to avoid the flat angle region where direction is unclear.

warning

Protection is disabled by default. FMI_STOP_PIPS and FMI_STOP_PCT define a stop candidate, but it only becomes executable when FMI_STOP_ENABLED is enabled.

The fire-zone entry

FMI_FAST_EMA_LENGTH and FMI_PULLBACK_EMA_LENGTH form the fire zone. With the defaults, these are EMA 10 and EMA 21.

A long setup requires the fast EMA at or above the pullback EMA and price at or above FMI_TREND_SMA_LENGTH. The candle low must reach the EMA zone while the close remains near or above the pullback EMA.

FMI_PULLBACK_PROXIMITY_PIPS gives price a small allowance around the zone in pip mode. In percentage mode, the allowance is fixed at approximately 0.02% of current price, so the pip proximity field no longer changes it.

The strategy opens one position at a time and does not average down.

SMA angle and the no-trade zone

The strategy measures how far the trend SMA has moved over FMI_ANGLE_LOOKBACK, expressed in pips per candle. It then smooths that raw measurement with an EMA using FMI_ANGLE_EMA_LENGTH.

The smoothed angle must exceed a positive threshold for a long entry:

• most pairs use FMI_ANGLE_THRESHOLD;
• EUR/JPY uses FMI_EURJPY_ANGLE_THRESHOLD.

When the absolute smoothed angle is smaller than the applicable threshold, the strategy considers the market a no-trade zone.

FMI_USE_STRONG_ANGLE_FILTER adds another requirement. When enabled, the unsmoothed angle itself must exceed FMI_STRONG_ANGLE_THRESHOLD. This asks both the broader smoothed direction and the immediate slope to be strong.

These values are tied to pip size. A wrong FMI_PIP_SIZE changes the angle scale as well as targets, stops, proximity, and spread measurement.

ADX confirmation

ADX must be at or above FMI_MIN_ADX.

When FMI_REQUIRE_ADX_RISING is enabled, a short LSMA of ADX must also be flat or rising. FMI_ADX_LSMA_LENGTH controls that smoothing. This is intended to avoid entries when trend strength is already fading.

ADX measures strength, not bullish direction. Direction comes from the EMA/SMA stack and angle filters.

Support and resistance filter

The strategy estimates recent support from the lowest low and recent resistance from the highest high over FMI_SR_LOOKBACK, excluding the current candle.

With FMI_REQUIRE_SR_FILTER enabled, a long close must not be meaningfully below recent support. This blocks entries during a fresh support breakdown. The mirrored short setup must not be meaningfully above recent resistance.

This is a lightweight structural filter, not a guarantee that support will hold.

Spread filters

An entry must satisfy all enabled spread limits:

• FMI_MAX_SPREAD_PCT limits spread as a percentage;
• FMI_MAX_SPREAD_ABSOLUTE limits spread in USDT for a pair such as USDT-BTC when greater than zero;
• FMI_MAX_SPREAD_PIPS limits spread in pips when greater than zero.

The pip limit depends on FMI_PIP_SIZE. With the default value of 0, the strategy uses 0.01 for JPY pairs and 0.0001 for other pairs.

Target and exits

The target uses FMI_TARGET_PIPS in pip mode or FMI_TARGET_PCT in percentage mode. It is adjusted to account for estimated round-trip trading fees.

Three technical exits can close only at break-even or better:

• FMI_EXIT_ON_OPPOSITE_SIGNAL exits when the complete mirrored short setup appears.
• FMI_EXIT_ON_NO_TRADE_ZONE exits when the smoothed angle returns inside the neutral zone.
• FMI_EXIT_ON_EMA_FLIP exits when the fast EMA falls below the pullback EMA.

These exits manage profitable or recovered positions. They do not deliberately realize a loss.

Planned stop level

The strategy calculates a stop candidate from the closest valid level below entry among:

• the configured pip or percentage distance;
• the bottom of the EMA fire zone;
• recent support.

The proximity allowance is placed below the structural references.

FMI_STOP_PIPS and FMI_STOP_PCT control this planned level. Enable FMI_STOP_ENABLED to allow it to execute as a loss-taking protective stop.

Good market conditions

5 Minute Intraday generally works best when:

• the pair is liquid and satisfies all spread filters;
• the fast EMA is clearly above the pullback EMA;
• price remains above the trend SMA;
• the smoothed SMA angle is outside the neutral zone;
• ADX shows sufficient strength;
• a controlled pullback reaches the EMA fire zone without breaking support.

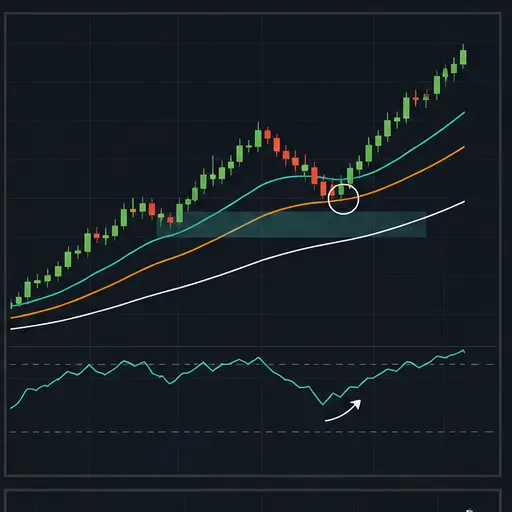

A strong setup often looks like a steady intraday rise, a brief retracement into EMA 10/21, and a close that holds the slower EMA while the broader SMA angle remains positive.

Avoid flat periods where the angle oscillates around zero, weak ADX conditions, and sharp support breaks. A fire-zone touch during a collapsing trend is not the same as an orderly pullback.

Creating the strategy

Create a spot strategy and choose 5 Minute Intraday as the buy and sell method. The default period is five minutes. Begin with backtesting or paper trading.

A practical setup order is:

1. Select a liquid pair with reliable five-minute candles.
2. Verify automatic or manual pip size.
3. Keep the default EMA and SMA structure initially.
4. Compare the ordinary and strong angle filters.
5. Test ADX level and rising confirmation separately.
6. Keep the support/resistance filter enabled for the first tests.
7. Set all three spread limits deliberately.
8. Evaluate losing positions knowing the exposed stop fields do not activate protection.

Strategy settings

Trading and execution

Setting	Description
BUY_ENABLED	Enables new buy orders.
SELL_ENABLED	Enables target and technical sell orders.
PERIOD	Candle period used for all calculations; the default is five minutes.
TRADING_LIMIT	Compatibility fallback only. It is ignored while the strategy-specific trading limit contains a positive value. Configure the strategy-specific setting for normal use. For USDT-BTC, this value is in USDT.
FMI_TRADING_LIMIT	For USDT-BTC, the amount of USDT used for an entry.
FUNDS_RESERVE	For USDT-BTC, the amount of USDT the bot must leave unused.
KEEP_QUOTE	For USDT-BTC, the amount of BTC the strategy must not sell.
MIN_VOLUME_TO_BUY	General minimum buy value. For USDT-BTC, this value is in USDT.
MIN_VOLUME_TO_SELL	General minimum sell value. For USDT-BTC, this value is in USDT.
FMI_MIN_ORDER_VALUE	Strategy-specific minimum entry value. For USDT-BTC, this value is in USDT.
FMI_MIN_SELL_VALUE	Strategy-specific minimum exit value. For USDT-BTC, this value is in USDT.
FMI_COOLDOWN_MS	Minimum live-trading delay in milliseconds between actions. It is not applied in backtests.
FMI_MAX_SPREAD_PCT	Maximum permitted spread as a percentage.
FMI_MAX_SPREAD_ABSOLUTE	Optional maximum spread in USDT for a pair such as USDT-BTC. 0 disables it.
FMI_MAX_SPREAD_PIPS	Optional maximum spread in pips. 0 disables it.
FMI_NEWS_BLOCK	Manually blocks new entries while existing positions remain manageable.
FMI_NEWS_BLOCK_UNTIL	Blocks new entries until the configured time.

EMA fire zone and trend

Setting	Description
FMI_FAST_EMA_LENGTH	Length of the faster EMA in the pullback zone.
FMI_PULLBACK_EMA_LENGTH	Length of the slower EMA in the pullback zone; keep it above the fast length.
FMI_TREND_SMA_LENGTH	Length of the broader trend SMA that price must hold above for longs.
FMI_PULLBACK_PROXIMITY_PIPS	Fire-zone and structure tolerance in pip mode. Percentage mode uses a fixed proportional allowance.

Angle filters

Setting	Description
FMI_ANGLE_EMA_LENGTH	EMA smoothing length applied to the raw trend-SMA angle.
FMI_ANGLE_LOOKBACK	Number of candles used to measure the trend SMA’s movement.
FMI_ANGLE_THRESHOLD	Minimum smoothed angle for most pairs.
FMI_EURJPY_ANGLE_THRESHOLD	Minimum smoothed angle used specifically for EUR/JPY.
FMI_STRONG_ANGLE_THRESHOLD	Minimum raw angle when the strong filter is enabled.
FMI_USE_STRONG_ANGLE_FILTER	Requires the current raw angle as well as the smoothed angle to show strong direction.

ADX and structure

Setting	Description
FMI_ADX_LENGTH	ADX lookback.
FMI_ADX_LSMA_LENGTH	Smoothing length used to judge whether ADX strength is rising.
FMI_MIN_ADX	Minimum ADX value for either long or mirrored short setups.
FMI_REQUIRE_ADX_RISING	Requires the smoothed ADX value to be flat or improving.
FMI_SR_LOOKBACK	Recent candles used to estimate support and resistance.
FMI_REQUIRE_SR_FILTER	Blocks longs meaningfully below support and mirrored shorts meaningfully above resistance.

Target and planned stop

Setting	Description
GAIN	General gain fallback retained in the configuration. The strategy normally uses its own target setting.
FMI_USE_PIPS	Uses pip distances for target, stop, proximity, and related measurements.
FMI_PIP_SIZE	Value of one pip. 0 selects 0.01 for JPY pairs and 0.0001 otherwise. For USDT-BTC, this value is in USDT.
FMI_TARGET_PIPS	Target distance in pip mode.
FMI_STOP_PIPS	Planned stop distance in pip mode.
FMI_TARGET_PCT	Target percentage when pip mode is disabled.
FMI_STOP_PCT	Planned stop distance in percentage mode.
FMI_MIN_NET_GAIN_PCT	Intended gain beyond estimated round-trip fee break-even.
FMI_STOP_ENABLED	Activates the planned loss-taking protective stop.

Technical exits

Setting	Description
FMI_EXIT_ON_OPPOSITE_SIGNAL	Enables a break-even-or-better exit on the complete mirrored short setup.
FMI_EXIT_ON_NO_TRADE_ZONE	Enables a break-even-or-better exit when the smoothed angle returns to neutral.
FMI_EXIT_ON_EMA_FLIP	Enables a break-even-or-better exit when the fast EMA falls below the pullback EMA.

Backtesting range

Setting	Description
BF_SINCE	Start of the selected backtesting period.
BF_UNTIL	End of the selected backtesting period.
DEEP_TESTING	Enables deeper backtesting mode in the editor.

Practical tuning directions

For more signals, reduce the angle or ADX threshold, disable rising-ADX confirmation, or widen the EMA proximity. Each change admits weaker trend conditions.

For cleaner trends, enable the strong raw-angle filter and require rising ADX. This can substantially reduce entries, especially after a trend has begun to mature.

Angle thresholds cannot be transferred safely without the same pip definition. Confirm FMI_PIP_SIZE before interpreting backtest results.

Use the support/resistance filter when you want to reject fresh breakdowns through prior lows. Disabling it makes the EMA fire zone the primary price-structure test.

Important limitations

• Stop-distance fields activate protective selling only when FMI_STOP_ENABLED is enabled.
• Technical exits do not deliberately close below break-even.
• Angle thresholds depend on pip size and chart period.
• EUR/JPY uses its own threshold; other JPY pairs use the general threshold.
• Percentage mode uses a fixed proximity instead of FMI_PULLBACK_PROXIMITY_PIPS.
• ADX measures strength, not direction.
• Recent support and resistance are simple range extremes and can break.
• Backtests cannot perfectly reproduce live spread, slippage, latency, or liquidity.

5 Minute Intraday is strongest when all parts describe the same event: positive trend angle, adequate strength, bullish EMA order, and a controlled return to the fire zone. If the market is inside the angle no-trade zone, waiting is part of the strategy.
