Creating an Aster API Key for Crypto Trading Bots

This guide walks you through setting up API access for Aster, a decentralized exchange. The process requires connecting your Web3 wallet, signing an authorization, and configuring your trading bot with the generated keys.

Info

Aster offers both Spot and Futures trading. In Gunbot, these are treated as separate exchanges. You must select either Aster or Aster Futures depending on which market you intend to trade.

1. Fund Your Wallet​

Important: You must deposit funds into your Aster exchange account before you can create an API key. The exchange prevents API creation for empty or unfunded accounts.

  • Deposit Assets: Send the assets you intend to trade (e.g., USDT, USDC, ETH) to your Aster wallet address or deposit them via the portfolio section on the exchange.
  • Wait for Confirmation: Ensure the deposit has cleared and appears in your "Overview" or "Portfolio" balance.

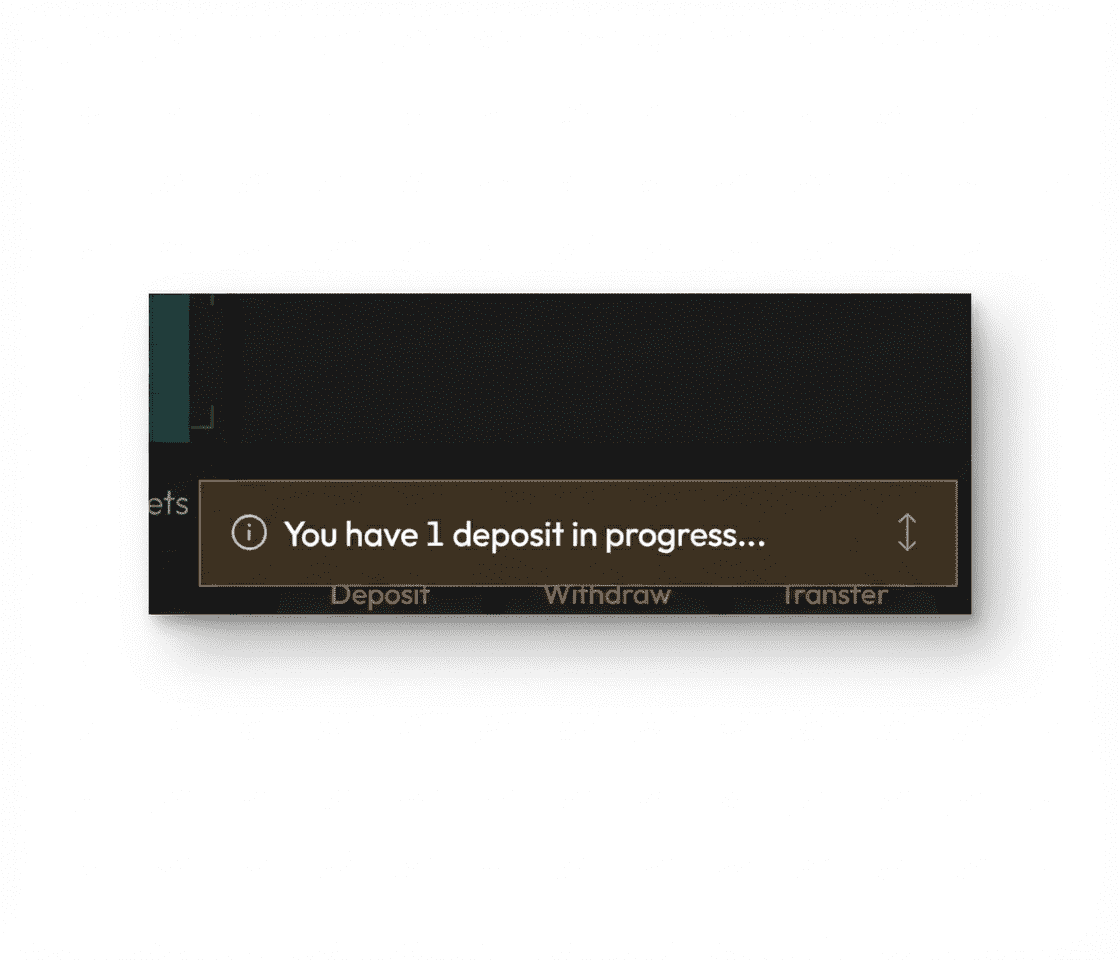

Notification showing a deposit in progress

2. Connect Wallet and Access API Management​

  • Navigate to the Aster website and connect your wallet (e.g., MetaMask).
  • Ensure you are connected to the correct network (e.g., Arbitrum One).
  • Hover over the More menu (or Products tab) in the top navigation bar.
  • Select API Management from the dropdown menu.

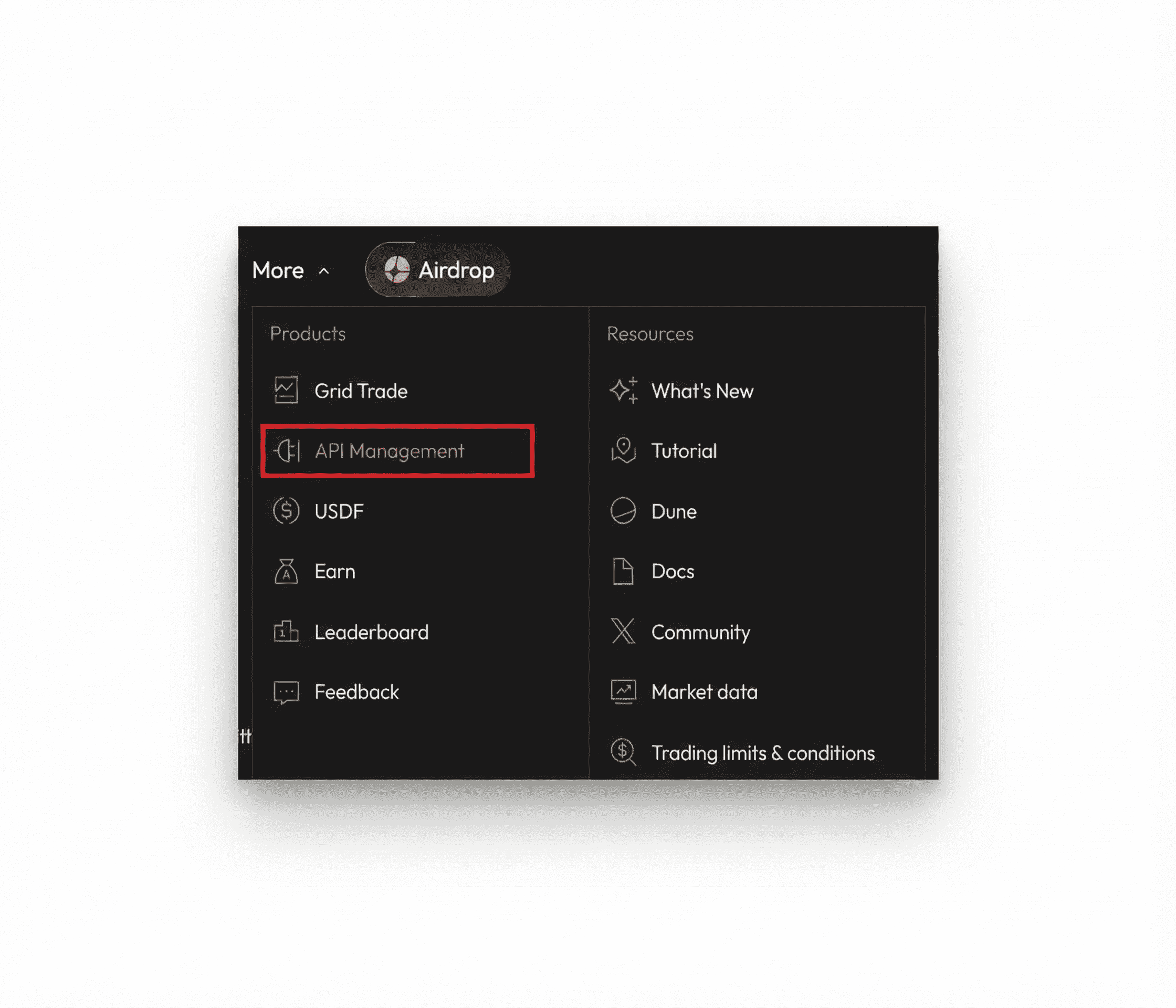

Accessing the API Management section from the Aster main menu

3. Initiate API Creation​

  • In the API Management dashboard, click the Create API button to start the process.

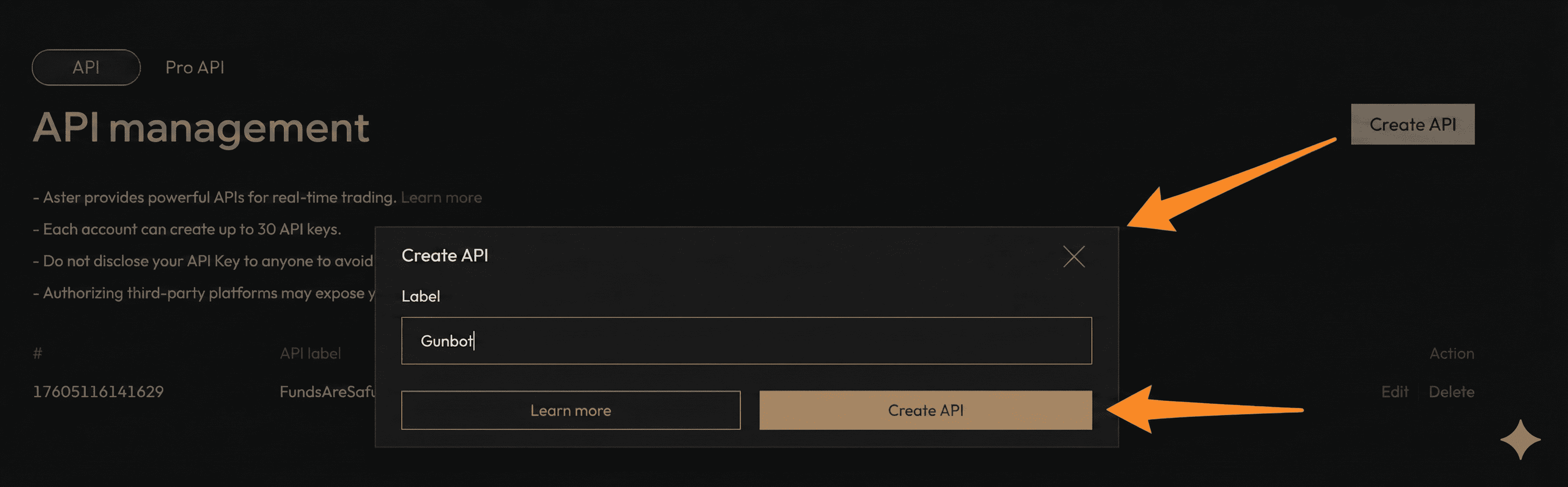

Clicking the Create API button in the Aster dashboard

4. Label Your Key​

  • A dialog box will appear asking you to label your new key.
  • Label: Enter a recognizable name (e.g., Gunbot) so you can easily identify it later.

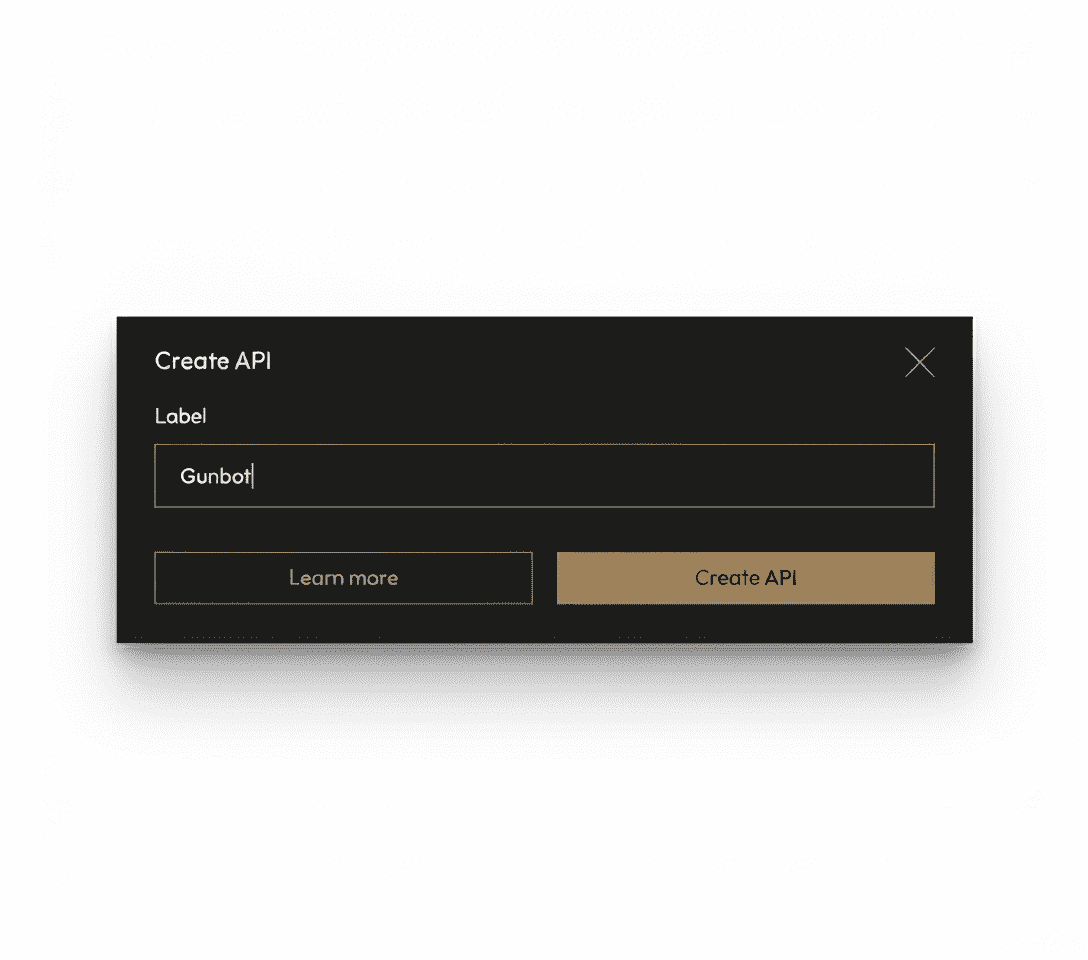

Label the API key

  • Api Restrictions**:** Enable Spot or Enable Futures, use one unique api for each market.
  • IP Restrictions (Optional): You can whitelist your bot's IP address here for added security, it is optional.
  • Click Create API to proceed.

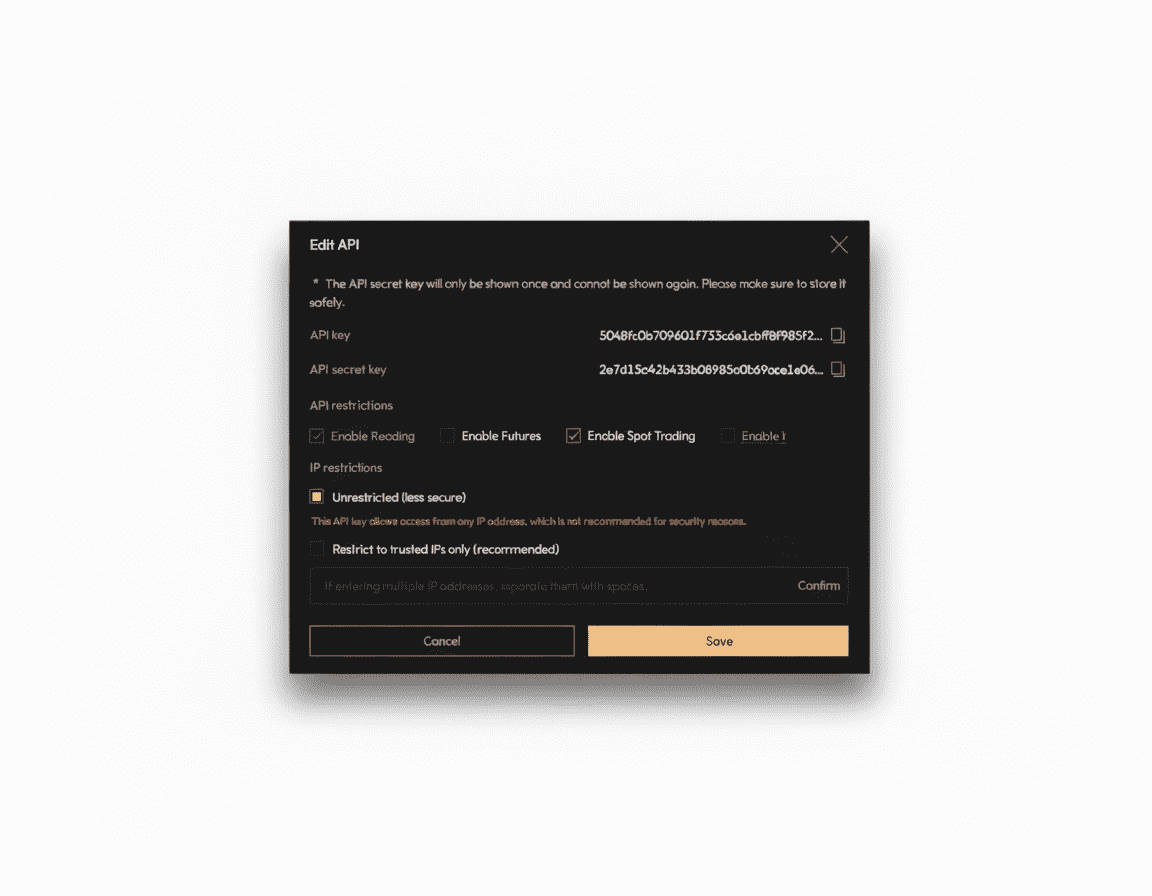

Naming the API key and setting optional IP restrictions

5. Authorize with Your Wallet​

  • Your Web3 wallet (MetaMask) will pop up with a Signature request.
  • This is a security step to verify ownership of the wallet. Review the request details and click Confirm (or Sign) to proceed.

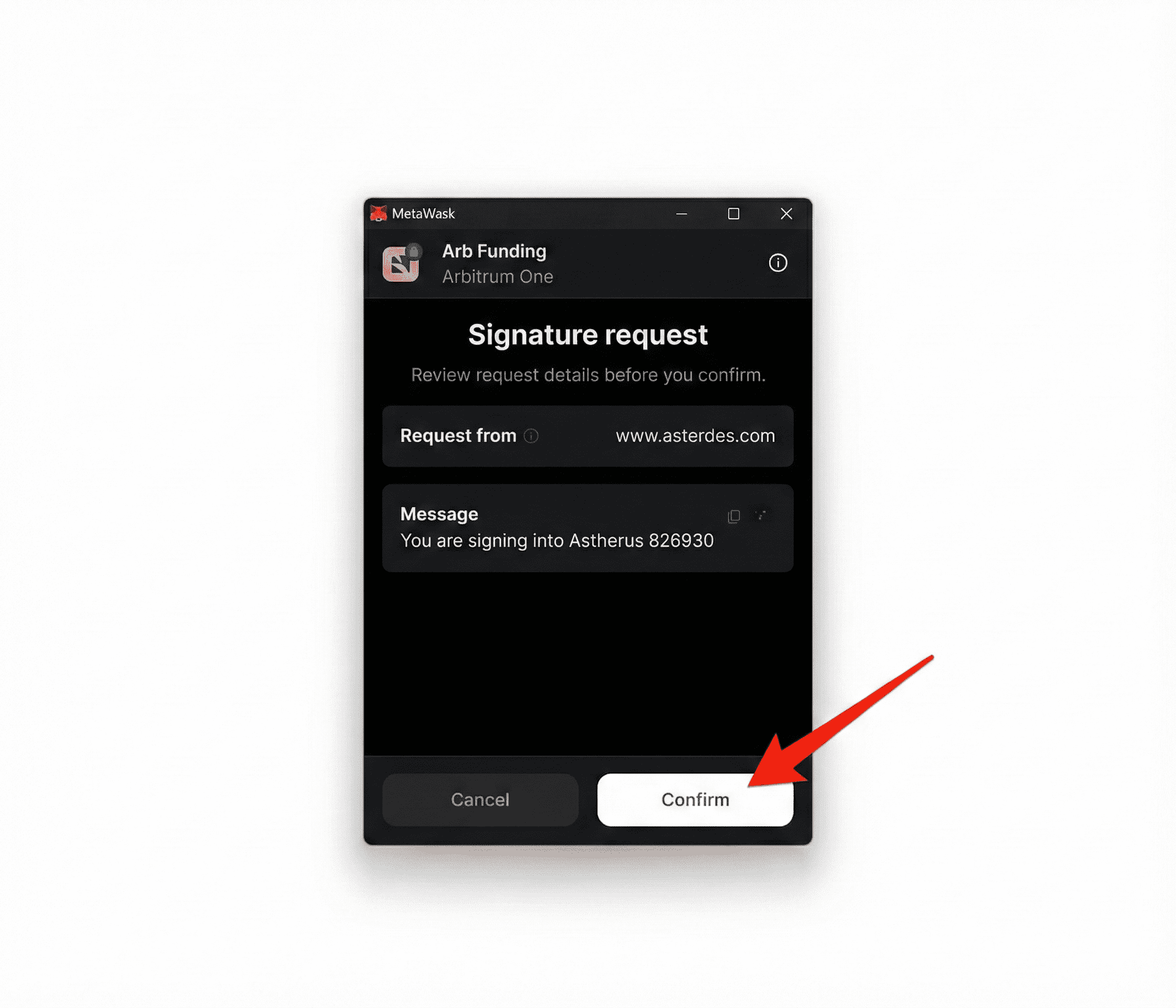

Signing the signature request in MetaMask to authorize API creation

6. Retrieve and Store Credentials​

  • Once the signature is confirmed, Aster will display your API Key and API Secret Key.
  • Critical Step: You must copy the API secret key immediately. It will only be shown once.
  • Store both the API Key and Secret Key in a secure, offline location.

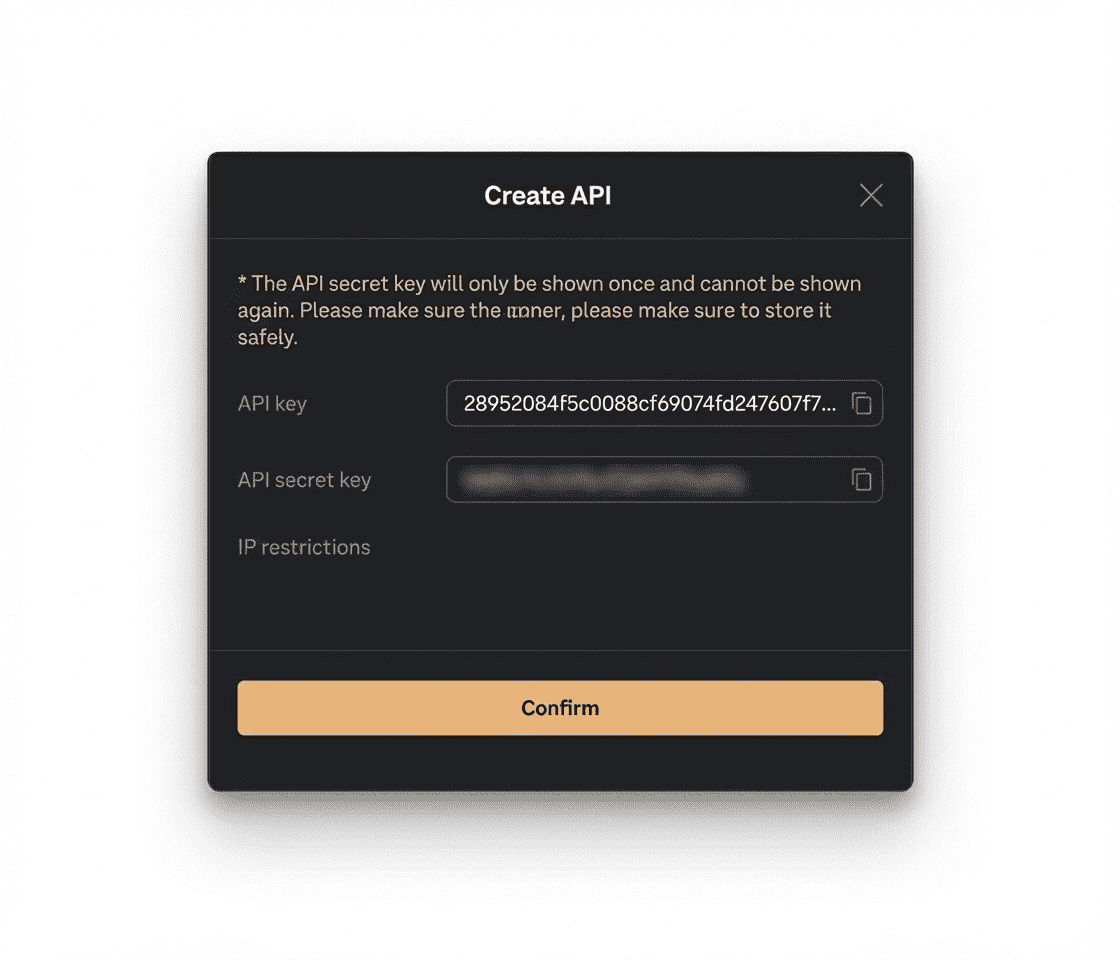

Viewing and copying the generated API Key and Secret Key

7. Configuring Gunbot​

Now that you have your credentials, you need to add them to Gunbot.

  • Open your Gunbot GUI and navigate to Manage API Slots.
  • Select the Exchange:
    • Choose Aster if you are trading Spot pairs.
    • Choose Aster Futures if you are trading Perpetual Futures.
  • Enter Credentials: Paste the API Key and API Secret you generated into the corresponding fields.
  • Adjust Settings: Set your desired Trading fees (e.g., 0.04%) and Delay (latency).
  • Save exchange configuration: click UPDATE REGISTERED KEYS button.

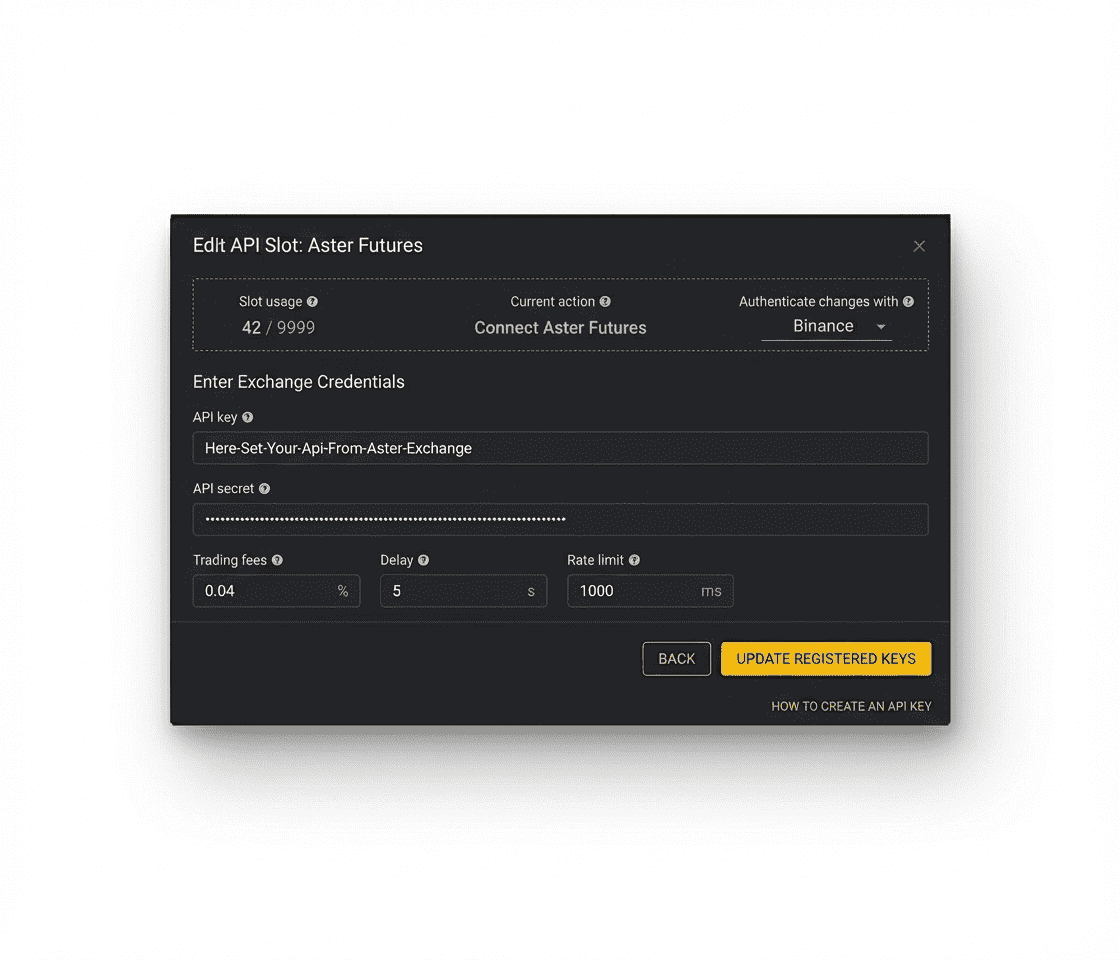

Configuring Aster Futures API credentials inside the Gunbot interface

Important

If you plan to trade on both Spot and Futures, you will need to set up two separate API slots in Gunbot: one using the Aster selector and another using the Aster Futures selector.

Verification Steps​

  • Save Configuration: Verify all API settings and save the changes in Gunbot.
  • Test Connection: Add a trading pair and check for data updates to ensure the connection is active.
  • Monitor: Watch for the initial balance checks to confirm the bot can read your wallet balance correctly.
